MobileLine - mobile locker system
Ideal for trade fairs, concerts, conventions and other events - flexible in use, depending on requirements.

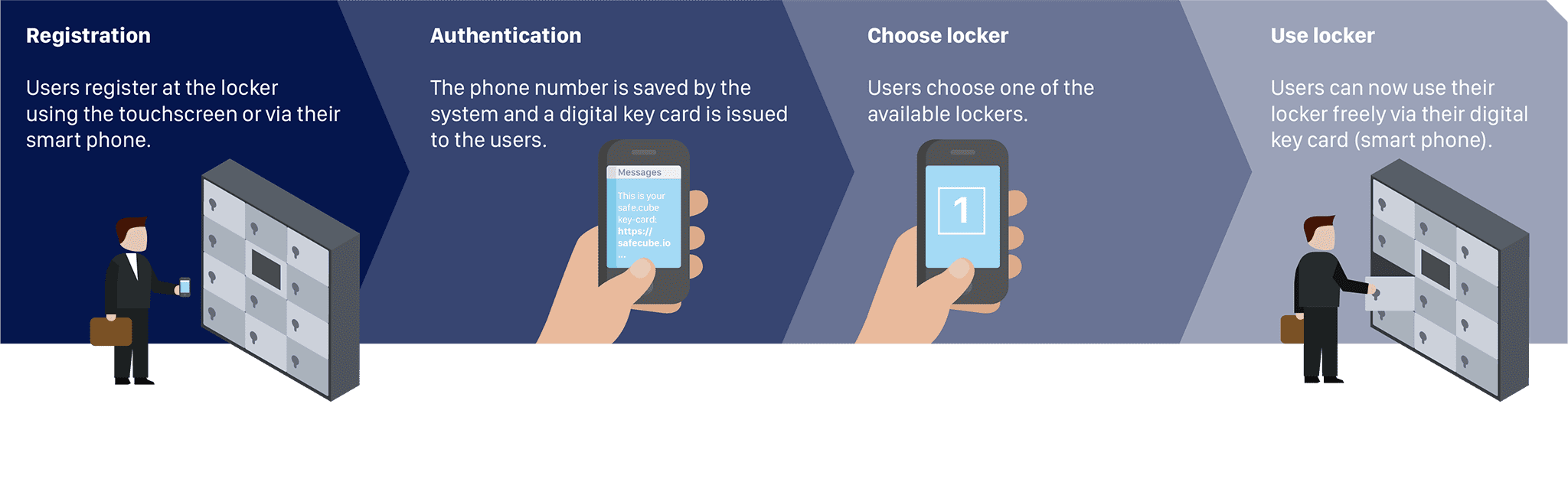

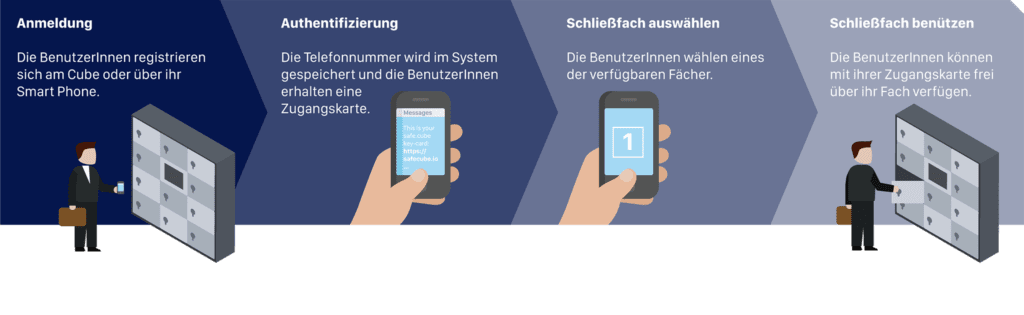

The mobile locker system "MobileLine" was specially designed to meet the requirements of event organisers and equipment rental companies. Thanks to its compact size and robust castors, it can be easily transported to any location. The SafeCube app allows guests to easily book a locker via their smartphone. This eliminates the need to queue at the cloakroom as before. Online payment services can also be activated on request. The flexible use and elimination of staff at the cloakroom allows you to adjust the capacity of your cloakroom area at short notice.
Respond flexibly to requirements - expand the number of compartments at any time with Extension-Locker
Each MobileLine Main-Locker can be connected to the extensions (Extension-Locker). This means that you can react to requirements at short notice at any time and change locations in the shortest possible time. A must in modern event logistics. The connection is made via a port on the back, which connects the Lockers to each other (daisy chain).
Master subject
All control components such as the LTE router, industrial PC, lock controller and other modules are housed in the master compartment.
Touchscreen
The system is operated via a 10.1" touchscreen or alternatively via a corresponding web app.
Scanner & Reader as options
The compartment under the master compartments is designed for the integration of optional readers, scanners and keypads. Further information on the options.

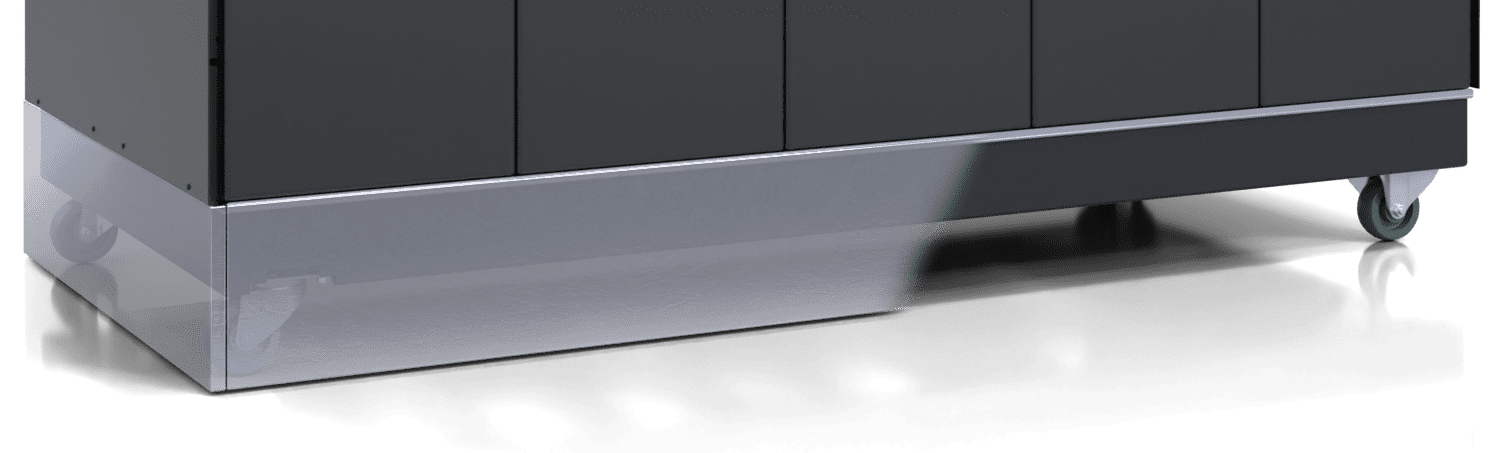

Central parking brake
The central parking brake locks the front wheels and prevents them from rolling away unintentionally.
Rollbar
The MobileLine can be driven to any location. The wheels are equipped with a polyurethane elastomer tread that is gentle on the floor and dampens vibrations, and are characterised by low starting and rolling resistance. The centrally operated brake system locks the front wheels.

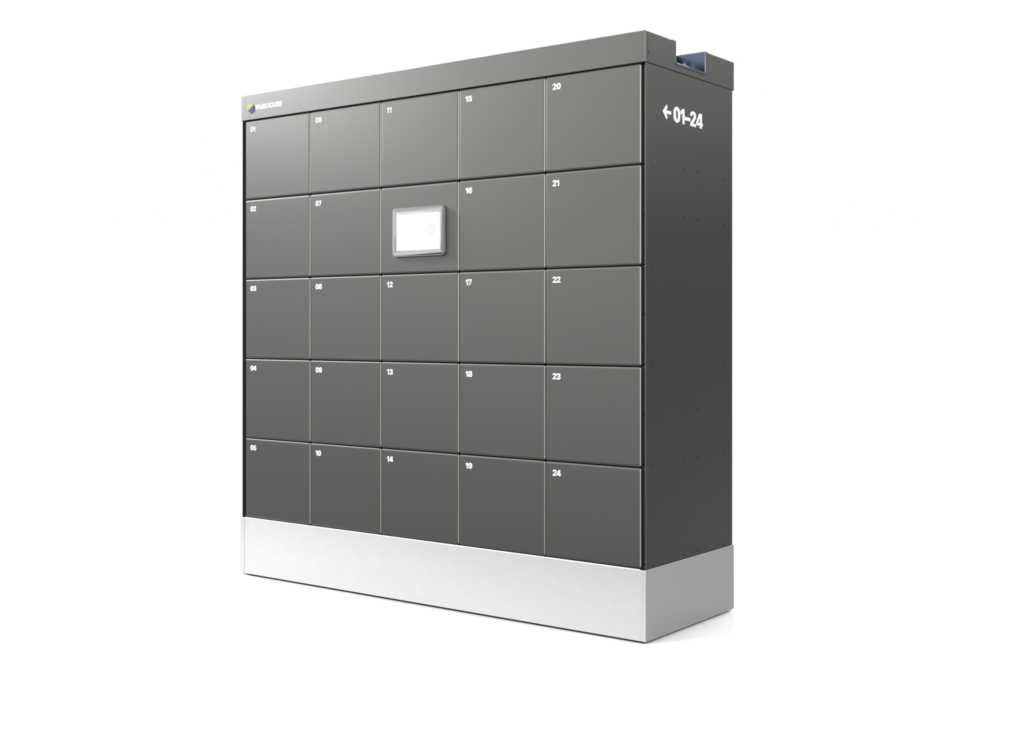

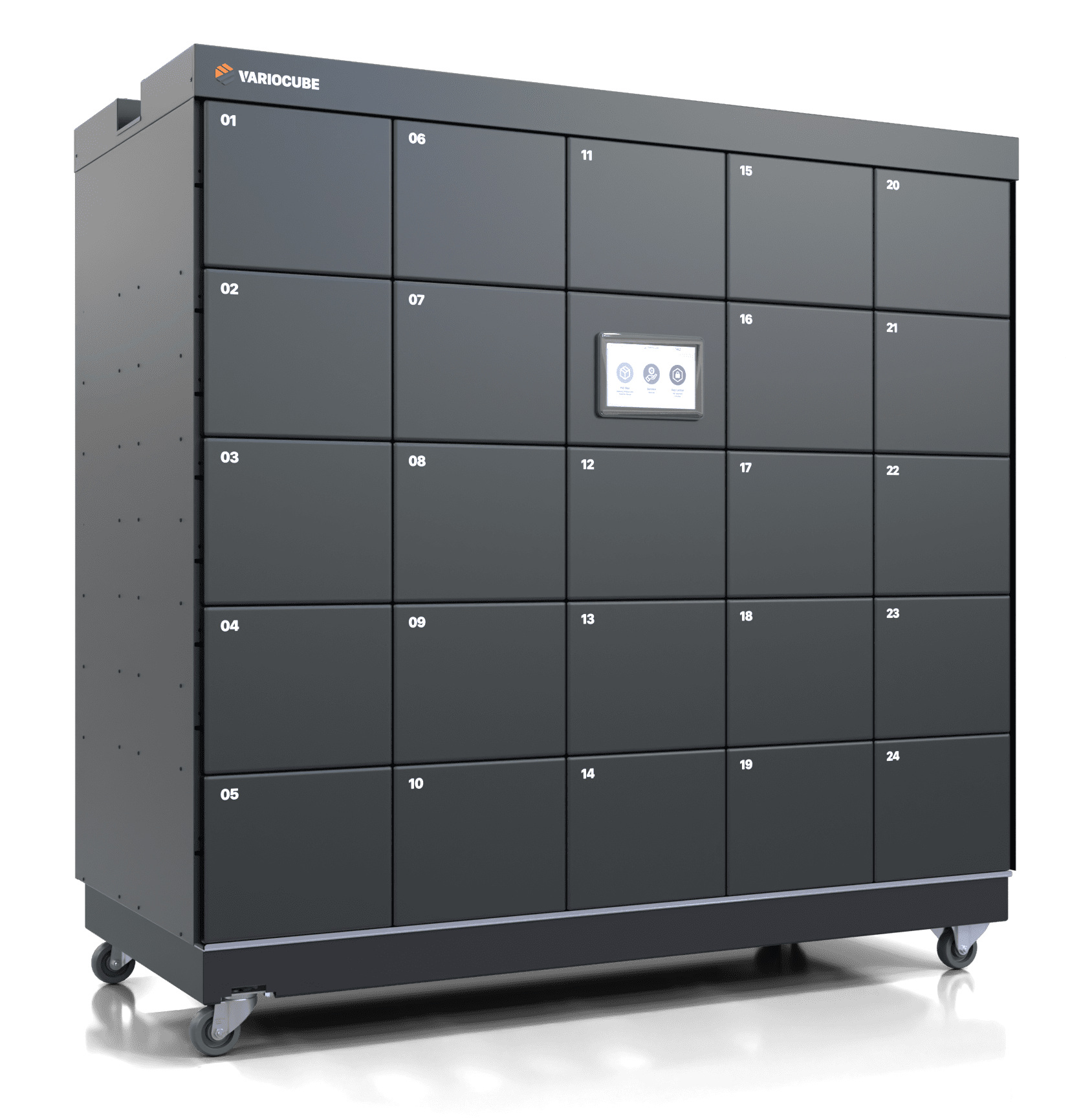

MobileLine - Main-Locker the control centre for flexible locker systems.
Thanks to the flexibility of the MobileLine, the mobile locker system can be used at a wide variety of locations at any time. And that's not all: thanks to the connections on the back, a Main-Locker can be extended by any number of Extension-Lockers. This means that the system can be perfectly customised to your individual requirements. This means you always have the right compartment sizes and the right total number of compartments for your application.
Why is the MobileLine mobile?
Flexibility is in demand in event management and event technology, which is why we have taken precisely these criteria into account for our mobile locker system and developed a robust platform.
What if I need more compartments?
Then simply connect a Main-Locker to the desired number of Extension-Lockers. Our Plug&Play technology enables fast commissioning.
Where is the technology housed?
All technical components required for operation are housed in the master compartment of the Main-Locker. The extension lockers do not have any operating elements as standard.

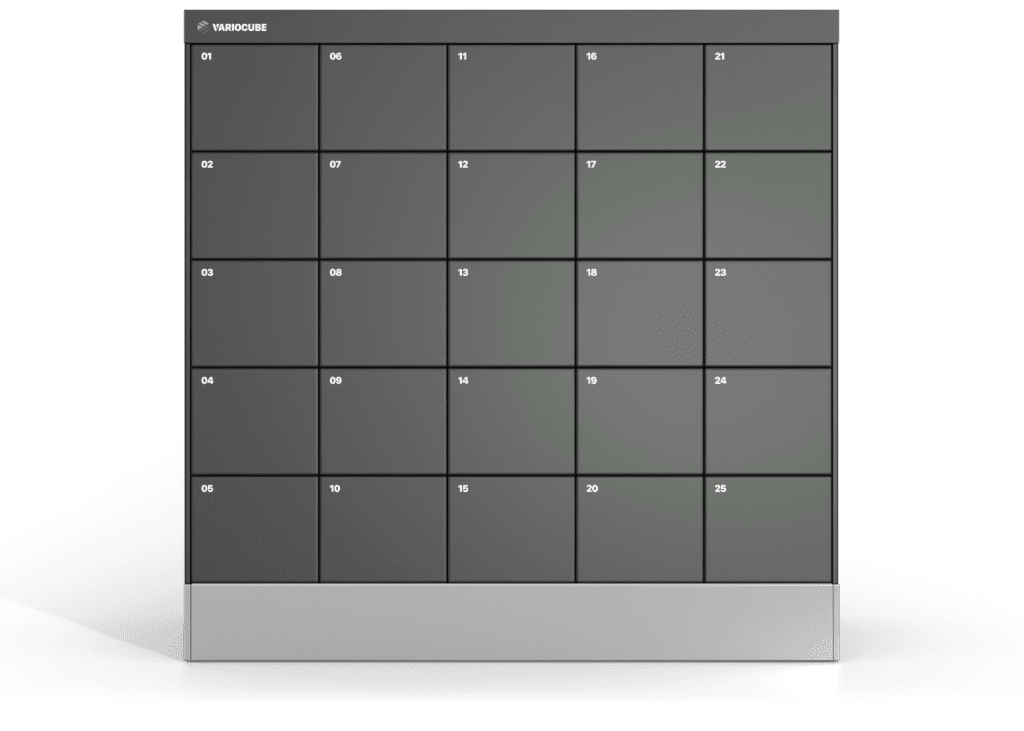

Extension-Locker - Extension modules
With the mobile locker system's extension lockers, you can easily expand the number of lockers required at any time. They do not have an integrated touchscreen or other operating elements.
Simple expansion with Plug & Play
The 230V and RJ45 connections are located on the back of the main and extension lockers to connect the modules to each other and enable communication between them.
Mobile locker system with plug & play
Sophisticated systems enable fast commissioning
Our locker systems are fully plug & play capable. A VARIOCUBE system only requires a 230-volt socket, while the internet connection is established via the integrated LTE router. The connection to the cloud and the automatic loading of the corresponding software take place automatically.
Our CUBE Admin Centre is directly connected to the cloud service. Thanks to the operation of our own APN in the LTE network, we have extensive monitoring and security mechanisms at our disposal.
Plug & Play extension of the MobileLine
The mobile locker system is characterised by the fact that extensions (extension lockers) can be easily connected, thus creating additional capacity without any configuration effort.
Endless possibilities for design
There are virtually no limits to the design of Variocube locker systems. The robust metal surface can be finished in a wide range of coating colours or used as an advertising space with surface decals.
Optional scanners, readers and more...
The MobileLine Master-Locker's range of functions can be further extended with the optional equipment options. For example, it is possible to control external door drives, install payment terminals and various readers and scanners. These options give you maximum flexibility for your application.
I/OExtender
The Variocube I/O extender enables the seamless connection of external systems to the Smart Locker in order to control them efficiently and across systems.
Scanner & Reader
Barcode / QR code scanner and NFC reader (Mifare & Legic) extend the range of functions.
Payment terminal
Goods and services can be paid for directly via the payment terminal using a debit or credit card.
Keypad
An external keypad can be used to enter booking codes even without a display
Maximum security for mobile locker systems
Burglary & theft protection
ProLine modules have Burglary protection/resistance class RC4 in accordance with EN 1627.
The locks and hinges of the Variocube MobileLine enclosure systems can only be opened with suitable burglary tools. However, if a compartment is forced open, the lock in question sends this information to the control unit. Corresponding warning messages are sent to the administration.
Fire protection & extinguishing equipment
MobileLine locker systems have the Fire protection class A1 according to EN 13501-1.
Aerosol fire extinguishers can be integrated into the individual compartments as an option. These two extinguishing devices enable targeted firefighting until the fire brigade arrives.
Data protection
AES256 encryption guarantees secure data transmission. Operated in a ISO 27001 certified data centre.
The Variocube communication unit is equipped with a firewall that blocks all incoming data traffic. When commissioned, a Variocube Smart Locker establishes an encrypted connection to the central management system in the cloud. From there, it receives its functionalities and loads the required applications.
Dimensions and technical data
External dimensions | 1,960 x 1,530 x 705mm (W/H/D) |
Weight | 350 kg |
Available compartment sizes | 2U (460 x 280 x 650mm) 1U (460 x 130 x 650mm) |
Body | Galvanised sheet steel |
Doors, side panels | Galvanised sheet steel, KTL primed and high-quality powder-coated |
Standard colour resp. powder | anthracite metallic, Tiger Mica 618 |
Base | Powder-coated moulded tube base |
Wheels | Polyurethane elastomer tread, diameter: 100mm |
Brake | Centrally operable, locking on right front & right rear |
Display (only on the Main-Locker) | 7" PCAP Touch Display |
Connections (In & Out) | 230V: Neutrik "Powercon" LAN/RS485: Neutrik "Ethercon" (only necessary for connection with Extension-Locker) |
Barcode Reader, Payment Terminal, NFC Reader | optional available |
Temperature range | -25 to +35 °C |
